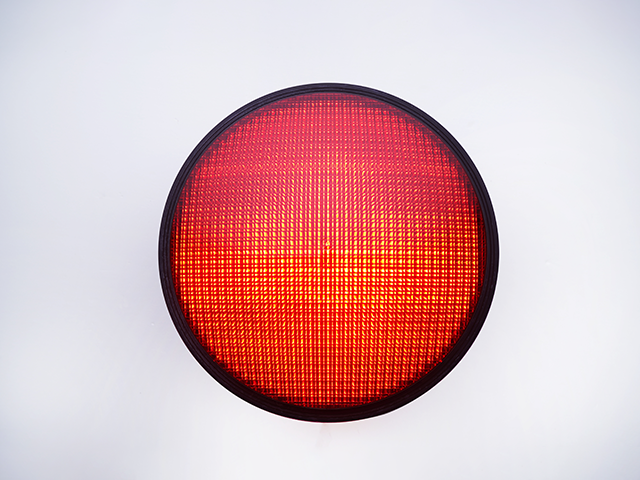

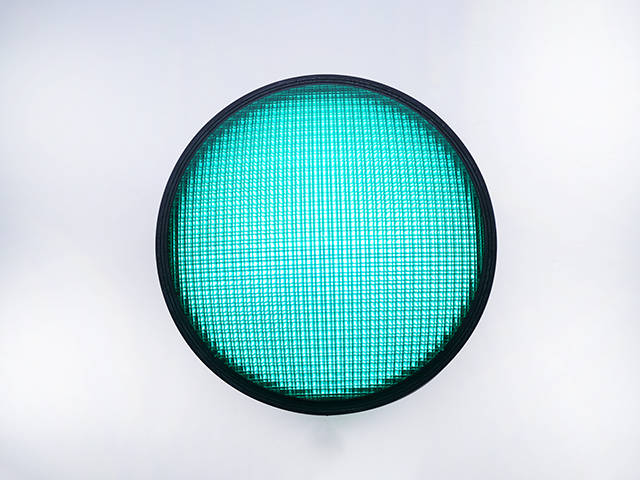

8" & 12" Standard LED Balls

Applications and product details

The attached IL6-P3 document describes DC-powered circular indications in 8-inch and 12-inch sizes. It includes different ordering codes for each colour and a separate ultra-low-power yellow variant. These distinctions matter when matching replacement modules to existing power equipment and signal housings.

• The attached variant operates on 10–28 VDC.
• Red, yellow and green model codes are listed for both diameters.
• Colour and size affect the documented power draw.
• Tinted lenses are standard, with clear-lens ordering noted in the sheet.

Choosing the right configuration

Specify the supply type, module diameter, colour and existing part number when contacting Fortran. Confirm that the quoted model matches the attached DC variant, particularly where an installation contains both AC and DC equipment. Use the mechanical drawing and connector details to check the selected replacement.

View the manufacturer product document for the model tables and drawings, or contact Fortran with your equipment details.
